SE-M8TN1/SE-M8TN2
檢測方式
電感式
連接方式
導線引出型（2m）
檢測距離
1 .5mm
輸出類型
NPN輸出
技術參數 | 檢測型號 | SE-M8TN1/SE-M8TN2 |
| 動作狀態 | NO/NC |
| 尺寸 | M8 |
| 屏蔽/非屏蔽 | 屏蔽 |
| 最大檢測距離 | 1 .5mm±15% |
| 穩定檢測范圍 | 0-1.2mm |
| 應差距離 | 檢測距離的10%以下 |
| 標準檢測物體 | |
| 電源電壓 | 12-24V DC脈動(P-P)10% max. |
| 消耗電流 | 13mA max. |
| 開關容量 | 100mA max |
| 應差頻率 | 2kHz |
| 回路保護 | 逆向連接、浪涌吸收、負載短路保護 |
| 工作狀態指示燈 | 動作顯示(紅色LED) |
| 周?chē)鷾囟?/td> | 動作時：-25-+70℃、保存時：-40-+85℃(不結冰 |
| 周?chē)鷿穸?/td> | 工作時，保存時：35-95%RH |
| 殘留電壓 | 2V max.(負荷：100mA、導線長：2m) |
| 絕緣電阻 | 50M Ωmax.(DC500V)充電部總體與外殼間 |
| 耐電壓 | AC 1000V 50/60Hz 1min.充電部總體與外殼間 |
| 保護構造 | IEC 規格IP67 |

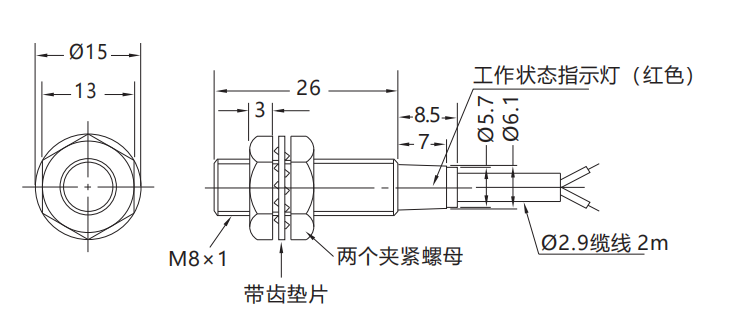

尺寸圖

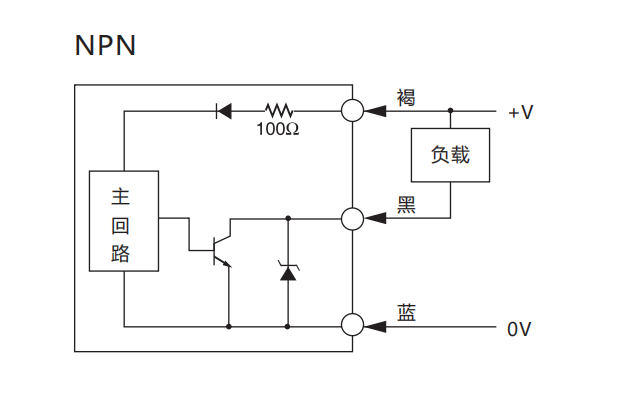

電路圖
