SL-J5MN1/SL-J5MN2
檢測方式
電感式
連接方式
導線引出型（2m）
檢測距離
5mm
輸出類型
NPN輸出
技術參數 | 檢測型號 | SL-J5MN1/SL-J5MN2 |
| 動作狀態 | NO/NC |
| 最大檢測距離 | 5mm±10% |
| 穩定檢測范圍 | 0-4mm |
| 標準檢測范圍 | 鐵：18×18×1mm |
| 電源電壓 | 12-24V DC 脈動（P-P）10% max |
| 消耗電流 | 10mA max |
| 控制輸出 | |
| 應差距離 | 檢測距離的10%以下 |
| 應差頻率 | 1KHZ min |
| 回路保護 | 浪涌吸收、逆向連接 |
| 工作狀態指示燈 | 檢測顯示燈（紅色LED） |
| 環境溫度 | 工作時、保存時：-25-70℃（不結冰不結露） |
| 環境濕度 | 工作時、保存時：35-95%RH(不結冰) |
| 殘留電壓 | 1V max. (負荷：50mA) |
| 絕緣電阻 | 50Ω max. (DC500V)充電部總體與外殼間 |
| 耐電壓 | AC1000V 50/60Hz 1min 充電部總體與外殼間 |
| 振動（耐久） | 10~55Hz 復振幅1.5mmX、Y、Z各方向2h |
| 沖擊（耐久） | 500m/s2X、Y、Z各方向3次 |
| 防護等級 | IEC-IP67 |
| 檢測面材質 | 聚芳脂（PAR） |
尺寸圖

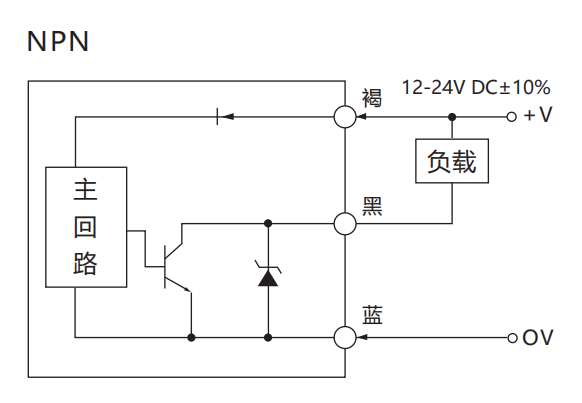

電路圖
