SE2-M8AP03T-2M/SE2-M8BP03T-2M
檢測方式
電感式
連接方式
導線引出型（2m）
檢測距離
3mm
輸出類型
PNP輸出
技術參數 | 檢測型號 | SE2-M8AP03T-2M/SE2-M8BP03T-2M |
| 動作狀態 | NO/NC |
| 尺寸 | M8 |
| 屏蔽/非屏蔽 | 屏蔽 |
| 感應距離 | 2-3mm |
| 外殼材質 | 不銹鋼 |
| 是否帶LED | ●帶LED |
| 工作電壓 | 10-30VDC |
| 連波 | <10% |
| 無負載電流 | <10mA |
| 最大負載電流 | 150mA |
| 漏電流 | <0.01mA |
| 電壓降 | <1.5V |
| 開關頻率 | ≤1KHz |
| 響應時間 | 0.1ms/0.1ms/ 0.1ms/0.3ms |
| 開關遲滯 | <15%(Sr) |
| 重復精度 | <3.0%(Sr)<3.0%(Sr)<3.0%(Sr)<5.0%(Sr) |
| 保護等級 | IP67 |
| 工作環境溫度 | -25°C- +70°C |
| 溫度漂移 | <10%(Sr) |
| 短路保護 | YES |
| 過載電流保護點 | 180mA |
| 感應面材質 | PA66 |
尺寸圖

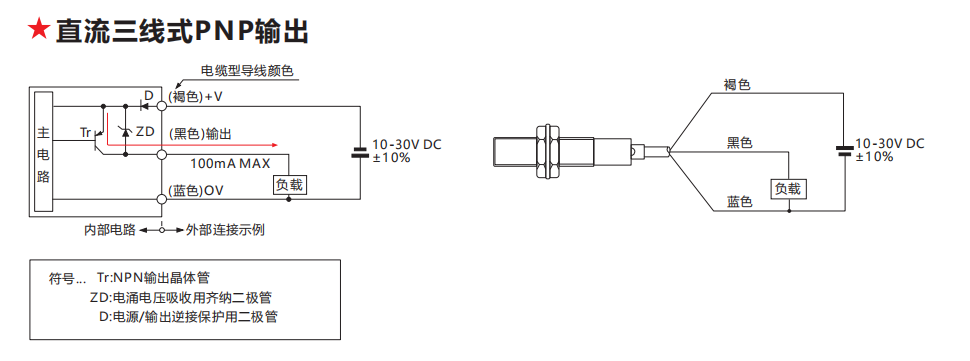

電路圖
